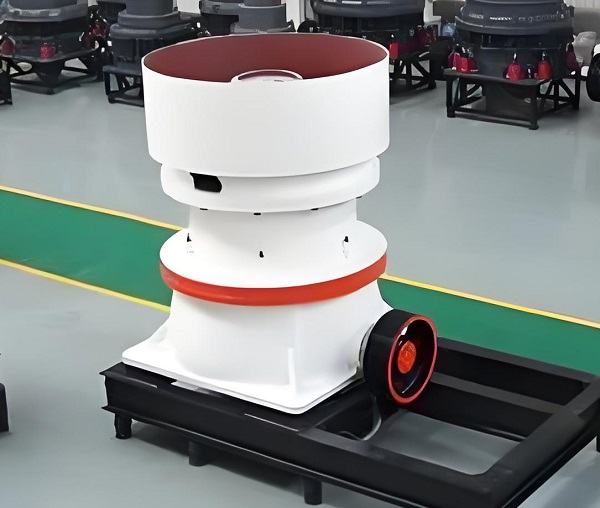

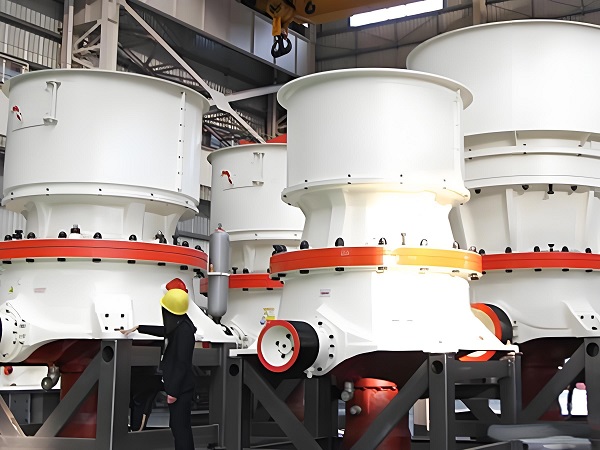

Advantages and characteristics of single-cylinder cone crusher

As a key medium-to-fine crushing equipment in the mining, construction, and building materials industries, single-cylinder cone crushers, with their unique structural design and high performance, play a vital role in crushing hard ores (such as granite, basalt, and iron ore) and in the production of building aggregates. Compared with traditional spring cone crushers and multi-cylinder hydraulic cone crushers, they offer significant advantages in structure, efficiency, and maintenance, and their core features precisely meet the demands of modern crushing operations.

Core Advantages: Performance Breakthroughs to Meet Modern Crushing Needs

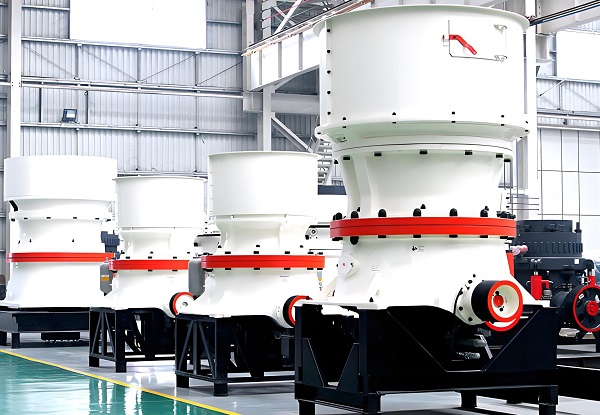

1. Simplified Structure, Enhanced Reliability and Stability

The most prominent advantage of the single-cylinder cone crusher lies in its highly integrated structure. Its core combination of a single hydraulic cylinder and spherical bearing replaces the complex spring system of traditional spring crushers or the multiple hydraulic cylinders and safety devices of multi-cylinder cone crushers. This simplified design offers two key benefits:

Significantly Fewer Failure Points: Compared to the average 10-15 hydraulic-related failure points in multi-cylinder equipment, single-cylinder equipment reduces hydraulic system components by over 60%. Common issues such as hydraulic leakage and cylinder seizure are reduced to less than one-third of those in traditional equipment, making it particularly suitable for mining environments characterized by high dust concentrations and harsh working conditions.

More Direct Force Transmission: Crushing force is transmitted directly to the single hydraulic cylinder at the bottom via the main shaft, eliminating the vibration caused by the "distributed force" of multi-cylinder equipment. The vibration amplitude during operation can be controlled to less than 0.5mm, improving machine stability by 40% and indirectly extending the service life of vulnerable parts such as the frame and liner.

2. High Crushing Efficiency and Greater Capacity Adaptability

The single-cylinder cone crusher achieves a synergistic combination of "laminated crushing and efficient discharge" through optimized crushing chamber geometry and motion parameters, resulting in crushing efficiency far exceeding comparable equipment.

Flexible and Adaptable Chamber Design: Utilizing a "high-energy crushing chamber" design, chamber types are available in multiple series, including C, E, and F, from coarse to fine crushing. The same equipment can adjust the crushing ratio (ranging from 3 to 15) simply by replacing the liner. For example, when processing granite, the coarse crushing chamber can achieve a capacity of 300-800 t/h, while the fine crushing chamber can produce aggregates with a particle size of ≤19 mm, maintaining a capacity of 150-500 t/h, adapting to production lines with varying particle size requirements. Precise and Efficient Discharge Opening Adjustment: The single hydraulic cylinder at the bottom retracts and retracts, allowing the discharge opening to be adjusted in minutes (adjustment range: 5-50mm) with an accuracy of ≤1mm. This eliminates the need for downtime or component removal. Compared to the tedious "stop-the-machine-remove-the-spring-adjust-the-shim" process of traditional spring crushers, production interruption time is reduced by over 90%.

3. Low Operation and Maintenance Costs, Outstanding Lifecycle Economics

The structural design of the single-cylinder cone crusher significantly reduces the operational complexity and cost of the equipment, contributing to its market appeal:

Reduced Consumption of Wearing Parts: The crushing chamber utilizes a composite "involute + circular arc" design, ensuring even material distribution within the chamber. This increases the liner wear area by 30% compared to traditional chambers, reducing liner consumption per unit of output by 25%-30%. Furthermore, the self-lubricating main shaft and spherical bearings reduce lubricant consumption by 40% compared to multi-cylinder equipment. Improved Maintenance Ease: The equipment features a "top-mounted motor + side-opening maintenance door" design, eliminating the need for lifting to replace the connecting belt between the motor and the main unit. The liner is secured with hydraulic nuts, reducing disassembly time from 4-6 hours with traditional equipment to 1-2 hours, reducing maintenance hours by over 60% annually.

Excellent Energy Control: Utilizing a "low-speed, large-swing angle" crushing principle, the main shaft speed is 15%-20% lower than multi-cylinder equipment, but the swing angle is increased to 12°-15°, reducing "ineffective impact" during material crushing. This reduces unit crushing energy consumption (kWh/t) by 15%-20% compared to spring crushers and 5%-10% compared to multi-cylinder equipment.

4. Comprehensive Safety Protection, Suitable for Complex Working Conditions

Targeting the high-risk environment of mining crushing, the single-cylinder cone crusher incorporates a multi-faceted safety protection system:

Quick Response Overload Protection: When uncrushable material (such as iron) enters the crushing chamber, the bottom hydraulic cylinder instantly relieves pressure, lowering the main shaft and quickly discharging the overloaded material. Once discharged, the hydraulic cylinder automatically resets, resuming operation. The entire process takes ≤5 seconds, requiring no manual intervention, eliminating component damage caused by "jamming" in traditional equipment.

Intelligently Controllable Overload Protection: Equipped with a pressure sensor and PLC control system, the system monitors pressure changes within the crushing chamber in real time. When the load exceeds 110% of the rated value, the system automatically reduces the feed rate or adjusts the discharge opening to prevent motor overload and burnout, reducing the equipment failure rate to less than 0.5%.

Upgraded Sealing Performance: The "labyrinth + airtight seal" dual sealing structure, combined with a high-pressure dust-proof blower, effectively prevents dust from entering the bearings and hydraulic system, extending seal life to over 12 months and resolving the pain point of traditional equipment, where dust intrusion causes lubrication failure.

Core Features: Differentiating Structure and Performance

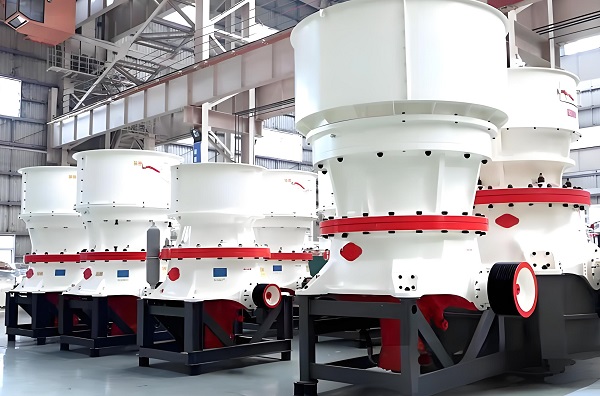

1. Single-Cylinder Hydraulically Driven, Integrated "Crushing + Adjustment + Protection" Functions

The single hydraulic cylinder at the bottom is the core component of the equipment, performing three functions: first, providing the required pressure for crushing at the closed-side discharge opening, ensuring uniform crushed particle size; second, acting as the actuator for discharge opening adjustment, enabling precise size control; and third, acting as a "safety valve" for overload and iron overload protection. This eliminates the need for additional safety devices, making the equipment more compact and reducing footprint by 20%-30% compared to multi-cylinder equipment of the same capacity, making it particularly suitable for production lines with limited space.

2. Primarily Laminated Crushing for Better Product Shape

The single-cylinder cone crusher has a deeper crushing chamber, where the material undergoes multiple "extrusion-grinding" lamination crushing processes, rather than simple impact crushing. This crushing method increases the cubic content of the material to over 85%, with a flake content of less than 10%, far exceeding the quality of spring crushers (cubic content approximately 60%). For applications requiring stringent particle shape, such as construction aggregates and high-speed railway ballast, single-cylinder equipment can directly produce qualified products without the need for additional shaping machines, reducing production line investment costs.

3. High degree of automation, compatible with smart production lines

Modern single-cylinder cone crushers are generally equipped with intelligent control systems, offering three core functions: First, remote monitoring. This system transmits real-time data such as speed, pressure, and temperature via an IoT module, allowing for remote viewing via mobile phones and computers. Second, automatic feed adjustment. This system, linked to the feeder, automatically adjusts the feed rate based on the material level in the crushing chamber to avoid idling or material jams. Third, fault warning. If an abnormality such as excessive bearing temperature or hydraulic oil contamination occurs, the system issues a 30-minute advance warning and recommends maintenance, transforming reactive repairs into proactive maintenance.

4. Wide Application Range, Suitable for Multiple Materials and Applications

The single-cylinder cone crusher covers a hardness range of materials with a Pugh hardness of f=5-18, efficiently processing medium-hard materials such as limestone and dolomite, as well as hard materials such as granite and iron ore. Its application has expanded from traditional metal and non-metallic mining to areas such as construction demolition waste resource utilization and cement clinker crushing. For example, in construction waste processing, it can crush concrete blocks into recycled aggregate. Its production capacity can reach 200-400 tons/hour, making it suitable for integrated "crushing-screening-sand making" production lines.

The single-cylinder cone crusher boasts simplified structure, improved efficiency, convenient operation and maintenance, and safe and intelligent features. Through the integrated design of its single-cylinder hydraulic system, it achieves a balance between crushing performance and economic efficiency. Its laminated crushing technology delivers high-quality particle shape, flexible chamber adaptability, and low energy consumption and trouble-free operation and maintenance, making it an ideal equipment for the "medium and fine crushing" stage of modern crushing production lines. Whether it is large-scale production in large mines or quality improvement and transformation of small and medium-sized aggregate plants, single-cylinder cone crushers can create higher production value for users through the dual advantages of performance and cost.
