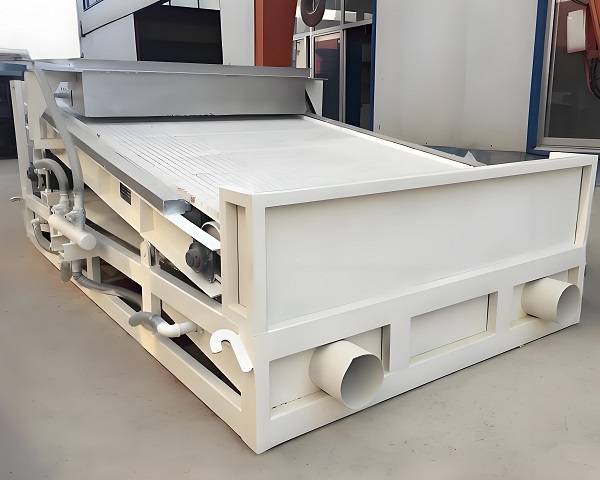

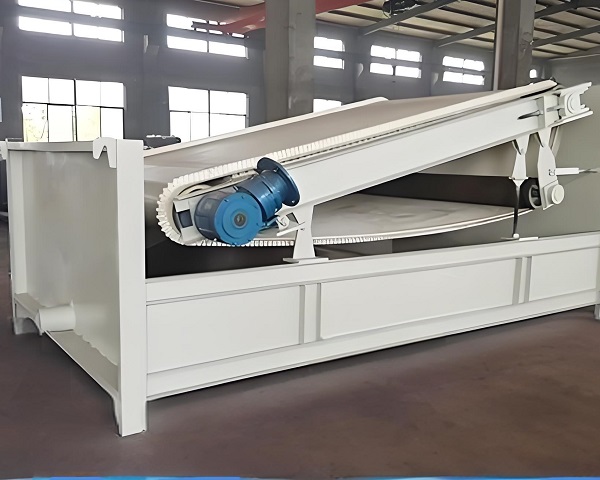

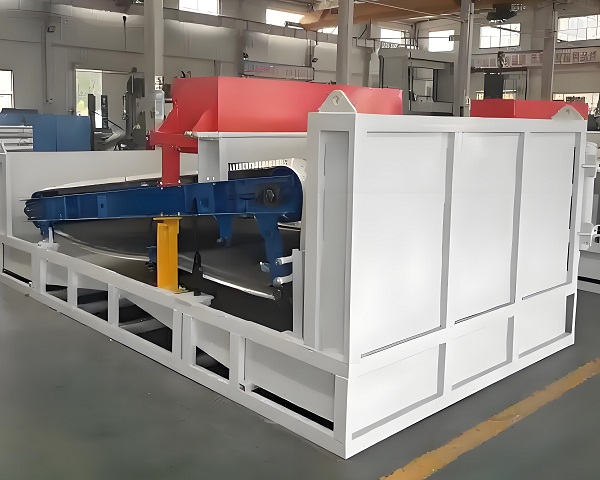

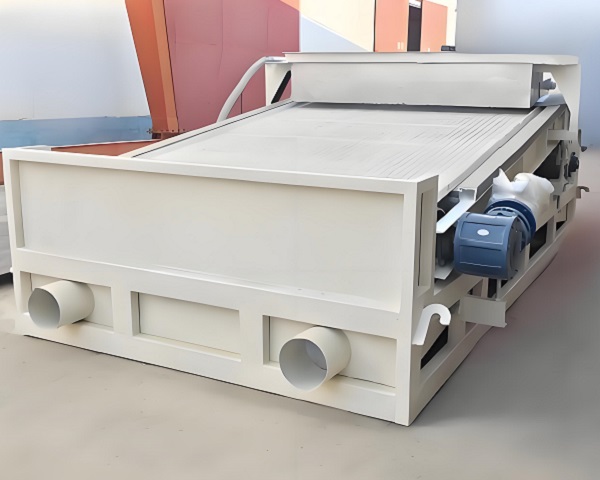

Structure and advantages of magnetic separators

Magnetic separators, as key equipment utilizing magnetic force for material separation, play an irreplaceable role in various industries such as mining, environmental protection, metallurgy, and chemicals due to their high separation efficiency and wide adaptability. Their core principle is to use the magnetic force generated by a magnetic field to attract magnetic minerals or magnetic impurities, achieving separation from non-magnetic materials, thereby achieving purification, impurity removal, or resource recovery. This article will systematically review the core components of magnetic separators and deeply analyze their technical advantages, providing a reference for equipment selection and application in the industry.

Core Components of Magnetic Separators

1. Magnetic System: The Core Functional Unit of the Equipment The magnetic system is the core of the magnetic separator's separation function, directly determining the magnetic field strength, magnetic field gradient, and separation effect. It is mainly divided into two categories: permanent magnet systems and electromagnetic systems. Permanent magnet systems typically utilize high-performance permanent magnet materials such as neodymium iron boron (NdFeB) and samarium cobalt (SCo), offering advantages like stable magnetic fields, no need for continuous power supply, and low energy consumption. They are suitable for applications requiring low to medium magnetic field strength (e.g., mineral primary selection, material impurity removal). Electromagnetic systems, composed of coils and iron cores, generate a magnetic field by passing current through them. The magnetic field strength can be flexibly controlled by adjusting the current, making them suitable for applications requiring high magnetic field strength (e.g., high-magnetic mineral selection, special material sorting). Magnetic systems are usually installed in cylindrical, roller, or plate configurations, with cylindrical systems being the most widely used. Their magnetic blocks are arranged with specific polarities to form a closed magnetic field loop, ensuring that the material receives a continuous and stable magnetic force within the sorting area.

2. Sorting Mechanism: The Execution Unit for Material Separation The sorting mechanism is the key component that enables the interaction between the material and the magnetic field to achieve separation. Depending on the equipment type, it mainly includes sorting cylinders, sorting rollers, and sorting troughs. The sorting cylinders are mostly made of stainless steel and are fitted around the magnetic system. Rotation moves the material; magnetic materials are attracted to the cylinder surface and rotate with it to the unloading area, while non-magnetic materials are discharged from the bottom of the sorting tank under gravity. Sorting rollers are commonly used in roller magnetic separators. The roller surface is in close contact with the magnetic system, resulting in a concentrated magnetic field, suitable for high-precision sorting of fine materials. The structural design of the sorting tank must be adapted to the material characteristics. For example, co-current troughs are suitable for coarse materials, counter-current troughs for fine materials, and semi-counter-current troughs accommodate the sorting needs of both coarse and fine materials, ensuring uniform material distribution and full contact with the magnetic field within the tank.

3. Transmission System: The Power Unit for Equipment Operation The transmission system provides stable power to the sorting mechanism, ensuring continuous and efficient operation of the equipment. It mainly consists of a motor, reducer, coupling, bearings, and other components. The motor serves as the power source. Depending on the equipment's processing capacity and speed requirements, either an asynchronous motor or a variable frequency motor (VFD) is selected. VFD motors allow for stepless speed adjustment, adapting to the sorting rhythm of different materials. The speed reducer lowers the motor speed and increases output torque, providing a suitable operating speed for the sorting cylinder or roller. Common types include gear reducers and cycloidal pinwheel reducers. The coupling connects the motor and speed reducer, transmitting power and compensating for installation misalignment. Bearings support the rotating shaft of the sorting mechanism and must be wear-resistant and high-temperature resistant specialized bearings. A lubrication system is also provided to reduce operational wear and extend service life.

4. Frame and Support Structure: The Basic Load-Bearing Unit of the Equipment The frame and support structure form the installation foundation of the magnetic separator, used to fix core components such as the magnetic system, sorting mechanism, and transmission system, ensuring the stability and safety of the equipment during operation. The frame is mostly welded from structural steel, possessing sufficient strength and rigidity to withstand the equipment's own weight, material load, and impact forces during operation. The supporting structure includes bearing seats and adjusting brackets. The bearing seats must have good positioning accuracy and vibration damping performance. The adjusting brackets can adjust the tilt angle of the sorting mechanism via adjusting bolts to adapt to the sorting requirements of different materials. Some large magnetic separators are also equipped with vibration damping pads to reduce vibration transmission during operation and protect the installation foundation.

5. Auxiliary Systems: Ensuring Efficient and Stable Equipment Operation

The auxiliary systems, including the feeding system, unloading system, lubrication system, and control system, are crucial for the normal operation of the magnetic separator. The feeding system, consisting of a feeder and hopper, ensures a uniform and continuous flow of material into the sorting area, preventing material accumulation or interruptions that could affect sorting efficiency. The unloading system uses scrapers, brushes, or high-pressure water spray to thoroughly remove magnetic materials adsorbed on the surface of the sorting cylinder or rollers, ensuring clean unloading. The lubrication system regularly provides grease to bearings, gears, and other components of the transmission system, reducing friction and wear and lowering the failure rate. The control system uses a PLC controller and touchscreen to adjust parameters such as equipment speed, feed rate, and magnetic field strength. Some intelligent magnetic separators also have fault alarm and data recording functions, improving equipment operation and maintenance efficiency.

Key Technical Advantages of Magnetic Separators

1. High Sorting Efficiency and Strong Processing Capacity: Magnetic separators directly apply magnetic force to magnetic materials, eliminating the need for chemical reagents during the sorting process. The material processing flow is short and fast. Its sorting efficiency is far higher than traditional sorting methods such as gravity separation and flotation, making it particularly suitable for large-scale material processing scenarios. For example, in iron ore beneficiation plants, a single large-scale cylindrical magnetic separator can handle thousands of tons per hour, quickly separating iron ore from gangue to meet continuous production needs. In environmental solid waste treatment, magnetic separators can rapidly separate scrap steel and magnetic impurities in production lines, with processing efficiency dozens of times higher than manual sorting. Furthermore, the sorting efficiency of magnetic separators is less affected by factors such as material moisture and particle size, maintaining stable sorting results even when processing sticky or damp materials.

2. High sorting accuracy and excellent purification and impurity removal effect: The magnetic field strength and gradient of the magnetic separator can be precisely adjusted according to the material characteristics, effectively distinguishing materials with different magnetic intensities and achieving high-precision sorting. For magnetic mineral separation, magnetic separators can improve the grade of magnetic minerals to a higher level, for example, increasing the iron grade of iron ore from around 30% to over 60%, meeting the requirements of subsequent smelting. For material impurity removal, magnetic separators can remove extremely low levels of magnetic impurities (such as metal fragments and magnetic dust) from materials, achieving a purity of over 99.9%, suitable for scenarios with stringent purity requirements (such as electronic materials and food processing). Furthermore, some magnetic separators are equipped with multi-layer separation mechanisms or multi-stage separation processes, enabling graded separation of magnetic materials and further improving separation accuracy.

3. Low energy consumption and controllable operating costs: The magnetic system of permanent magnet magnetic separators does not require continuous power supply; only the transmission system consumes a small amount of electrical energy, resulting in energy consumption far lower than electromagnetic separation and flotation equipment. Even for electromagnetic magnetic separators, energy consumption can be controlled as needed by adjusting the current, avoiding energy waste. Compared to traditional sorting equipment, magnetic separators offer significant advantages in operating costs: firstly, they eliminate the need for chemical reagents, reducing material handling consumable costs; secondly, their simple structure, fewer vulnerable parts (mainly screens and scrapers), and streamlined maintenance processes result in low maintenance costs. Under normal maintenance conditions, magnetic separators can last 8-10 years, significantly reducing equipment replacement and maintenance costs for businesses in the long term.

4. Wide Adaptability and Diverse Application Scenarios: Magnetic separators allow for flexible adjustments to equipment type, magnetic field strength, and sorting parameters based on material characteristics and processing requirements, adapting to the sorting needs of different industries and materials. In the mining industry, they are suitable for sorting magnetic minerals such as iron ore, manganese ore, and magnetite; in the environmental protection industry, they can be used for scrap steel recycling from municipal solid waste and construction waste, and for removing magnetic impurities from industrial wastewater and sludge; in the metallurgical industry, they are used for iron resource recovery from steel slag and metallurgical dust; in the food industry, they can remove metallic impurities from grains and food raw materials, ensuring food safety; and in the chemical industry, they are used for the purification of chemical raw materials, such as the separation of magnetic impurities from plastic granules and rubber raw materials. Furthermore, magnetic separators can handle a wide range of material particle sizes, from micron-sized fine particles to centimeter-sized coarse particles, further expanding their application scenarios.

5. Environmentally friendly and pollution-free, meeting green development requirements. The separation process of magnetic separators requires no chemical reagents and does not generate wastewater, waste gas, waste residue, or other pollutants, making them environmentally friendly. Simultaneously, their sealed design effectively prevents dust leakage, reducing pollution to the working environment. In the field of resource recycling, magnetic separators can achieve efficient recycling of magnetic resources, such as scrap steel recycling and magnetic mineral recovery from mine tailings, complying with the environmental policy of "resource recycling." In the field of material impurity removal, they can reduce the wear and tear on subsequent production equipment caused by impurities, reduce pollutant emissions during the production process, and help enterprises achieve green production. Compared with traditional sorting equipment, magnetic separators have significant advantages in environmental performance and are ideal equipment for practicing the concept of green development.

The core components of a magnetic separator work together to form a highly efficient, precise, and stable sorting system. Its technological advantages lie not only in sorting efficiency, accuracy, and cost control, but also in its wide adaptability and environmental friendliness. With continuous advancements in industrial technology, magnetic separators are developing towards greater intelligence, larger scale, and higher efficiency. This includes adopting intelligent control systems to automatically optimize magnetic field strength and sorting parameters, developing new permanent magnet materials to improve magnetic field stability and lifespan, and designing large-scale equipment to meet the needs of large-scale production. When selecting a magnetic separator, companies should rationally choose the type, magnetic material, and equipment specifications based on their material characteristics, processing capacity, and sorting requirements. This will allow them to fully leverage its technological advantages, improve production efficiency, product quality, and resource utilization, and provide strong support for the high-quality development of the industry.
